Description

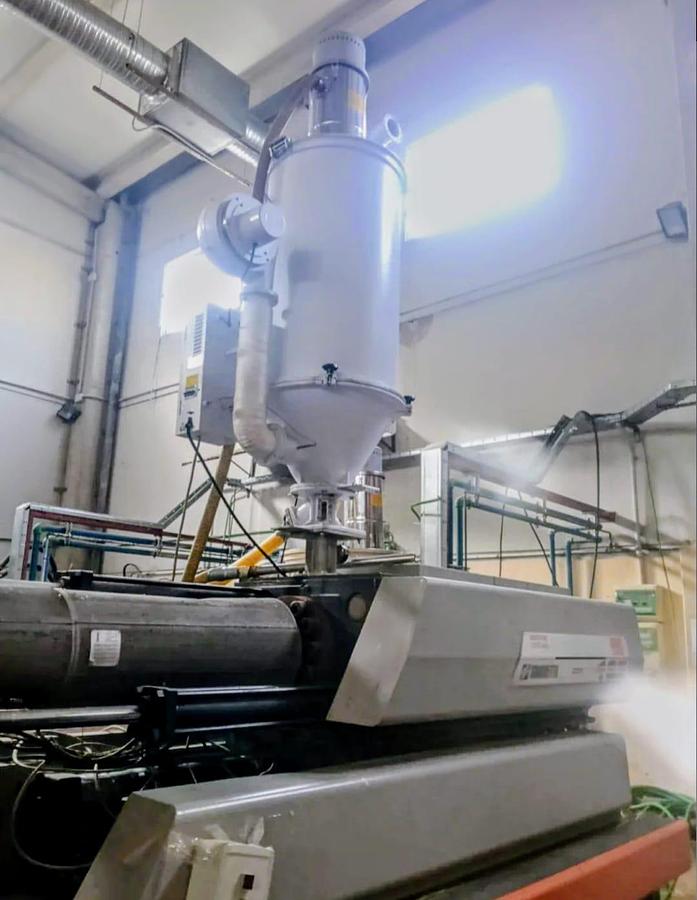

SANDRETTO Thermoplastic injection molding machine
485 ton with injection capacity 2060 cm3 with robot
SPECIFICATIONS

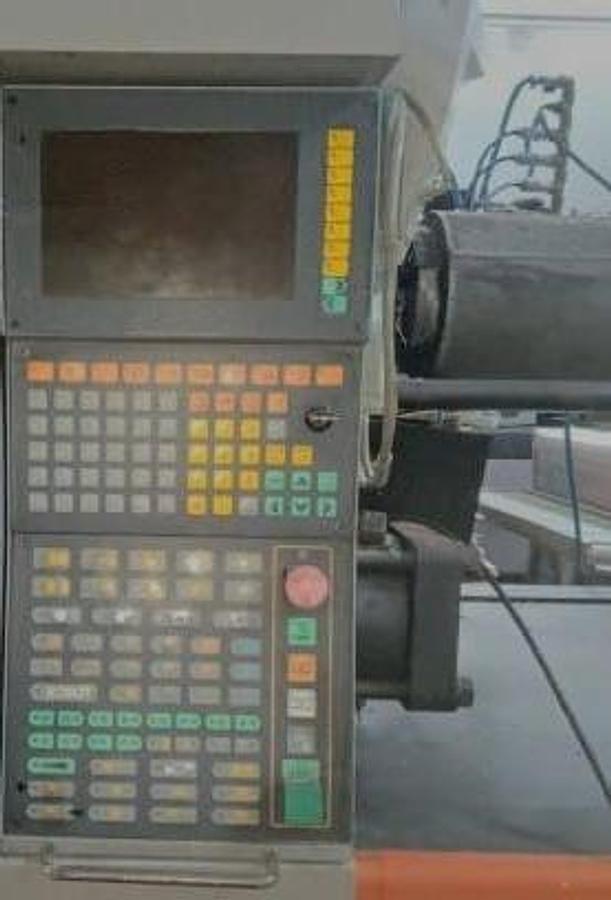

Control: SEF 100
Screw diameter: 80 mm
Maximum injection pressure: 1,540 bar
Ejector stroke: 305 mm
Fixed platen centering: 160 mm
Moving platen centering: 160 mm
Injection volume: 2060 cm3
Minimum mold height: 250 mm
Maximum mold height: 850 mm
Maximum mold opening: 830 mm
Tie bar spacing: 740x740 mm
Platen dimensions: 1120x1120 mm
Maximum mold weight: 3,000 kg
Oil tank volume: 750 l
Core pull units: 2
Cartesian robot: Servo-electric
Specifications
| Manufacturer | SANDRETTO |
| Model | Thermoplastic injection molding machine |
| Condition | Used |
| Stock Number | 4040 |
| Control | SEF 100 |
| Screw diameter | 80 mm |
| Maximum injection pressure | 1,540 bar |
| Ejector stroke | 305 mm |
| Fixed platen centering | 160 mm |
| Moving platen centering | 160 mm |
| Injection volume | 2060 cm3 |
| Minimum mold height | 250 mm |
| Maximum mold height | 850 mm |
| Maximum mold opening | 830 mm |
| Tie bar spacing | 740x740 mm |
| Platen dimensions | 1120x1120 mm |
| Maximum mold weight | 3,000 kg |
| Oil tank volume | 750 l |
| Core pull units | 2 |
| Cartesian robot | Servo-electric |
