Description
Reinforcement mesh welding machine VIDA
For production of welded reinforcement meshes
Producer of the equipment: VIDA VRES
Status: in working order / operational
WORKING DIMENSIONS
Width of mesh (length of transverse rib): 1500 - 2400 mm
Length of mesh (length of longitudinal rib): 3000 - 6000 mm
Distance between longitudinal rods (between center axes): max. 2400 mm
Longitudinal cell size: 150 – 200 mm
Transverse cell size: 50 – 200 mm
Diameter of longitudinal rib: 5,0 – 10,0 mm
Diameter of transverse rib: 5,0 – 10,0 mm
Longitudinal indentation:
- In beginning: 25 – 200 mm
- At the end: 100 – 200 mm
Transverse indentation: 10 – 400 mm
Number of longitudinal ribs: max. 16 pcs
SCOPE OF SUPPLY
Full set of equipment consists of following:

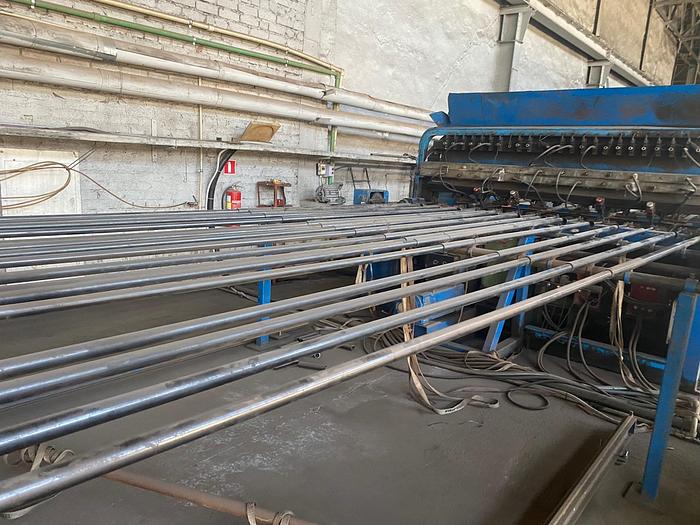

- Manual loading of longitudinal ribs. Feeder of longitudinal ribs is with pipe gliders;

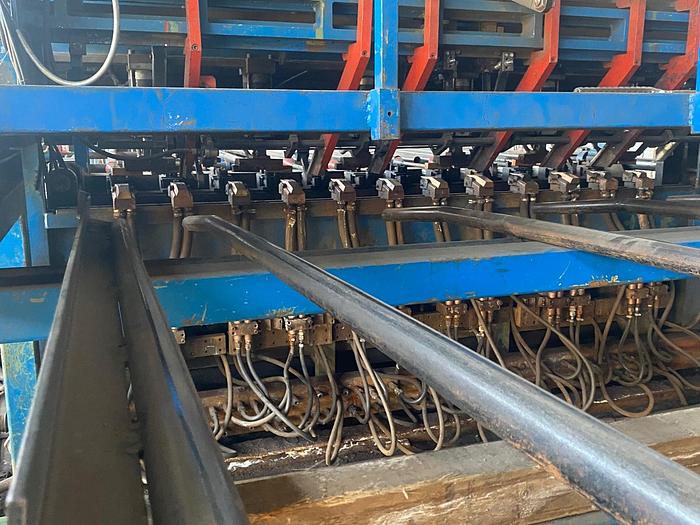

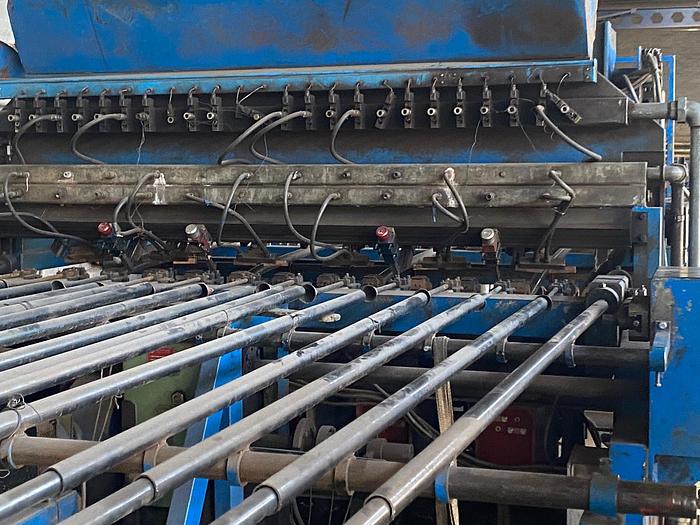

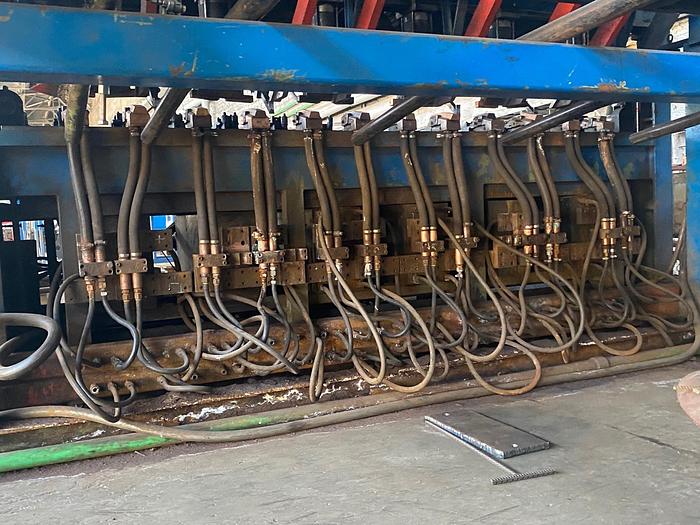

- Welding portal with 8 pneumatic welding presses;
- Power of each transformer is 110 KW – 6 pcs (4 pcs new, installed 2019, Sarmata, Italy);

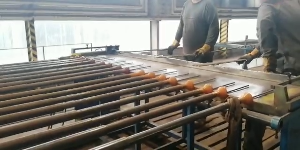

- Feeder of transverse ribs is a pre-loading magazine. With help of pneumatic capture they are fed for welding. (see attached video)

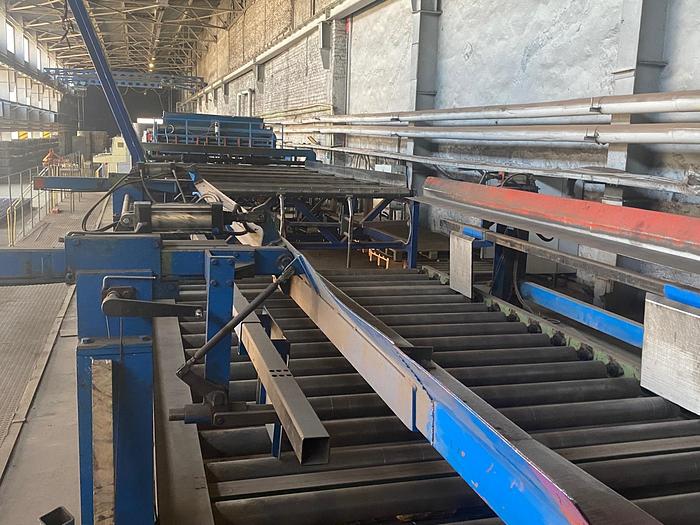

- Length of flipping table is 6m with Schneider Electric control;
- Mesh stacker for mesh up to 6m.
- System with thyristor welding! Cabinet of control S7 300 Siemens
DATA ON CONNECTIONS AND CONSUMPTION
Information about connections and consumption is informative.
1. Electrical current
Three-phase current 400V, 50Hz
Control current 24V
Permissible voltage fluctuations of the electrical network ±10%
Recommended connection power 600 KW
Recommended power for welding in cascading mode ~60 KW
2. Cooling water
Inlet temperature max 25ºС
Pressure max 1,5 Bar
Supply and return pressure 3,5 Bar
Water hardness according to German scale, dH 7-8
Hydrogen ion, pH 7-8
Consumption max 120 l/min
3. Compressed air
Pressure 6 bar
Classification of air according to ISO 8573-1 min 5
Air compressor performance 200 l/h
Oil and moisture pollution is not allowed, the air should be
slightly lubricated
4. Environmental conditions
In accordance with ISO 669-1
Air Temperature +5 - +40ºС
Relative humidity 95%
5. Production speed and parameters
Maximum 90 pcs per minute transverse ribs for 6mm rebar
6. Raw material requirements
Raw material has to comply with technical requirements for production of spotwelded reinforcement mesh - scale free, grease-free and rust-free.
Raw material can be profiled or plain with good welding properties, non-alloy, without impurities, Carbon equivalent not more than 0,4%, tensile strength max 650 N/mm2.
Ribs are fed pre-straightened and cut to size on suitable equipment with correct rotating device.
Specifications
Manufacturer | VIDA |
Model | Mesh Welding Line |
Condition | Used |
Stock Number | 3923 |
Max. Width of mesh | 2400 mm |
Min. Width of mesh | 1500 mm |
Max. Length of mesh | 6000 mm |
Min. Length of mesh | 3000 mm |
Distance between longitudinal rods | 2400 mm |
Longitudinal cell size | 150 – 200 mm |
Transverse cell size | 50 – 200 mm |
Diameter of longitudinal rib | 5,0 – 10,0 mm |
Diameter of transverse rib | 5,0 – 10,0 mm |
Longitudinal indentation in beginning | 25 – 200 mm |
Longitudinal indentation at the end | 100 – 200 mm |
Transverse indentation | 10 – 400 mm |
Number of longitudinal ribs | max. 16 pcs |
