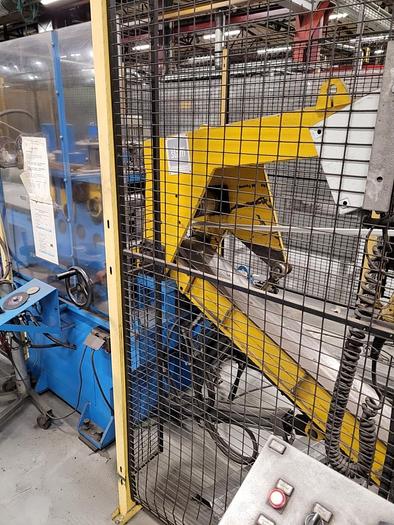

2009 STAM FLAT BAR CTL LINE 150x8

2009 STAM FLAT BAR CTL LINE 150x8

or
Call (or message us on WhatsApp) (+34) 916 587 260

Description

STAM FLAT BAR LINE 150x8


Very good conditions | In operation

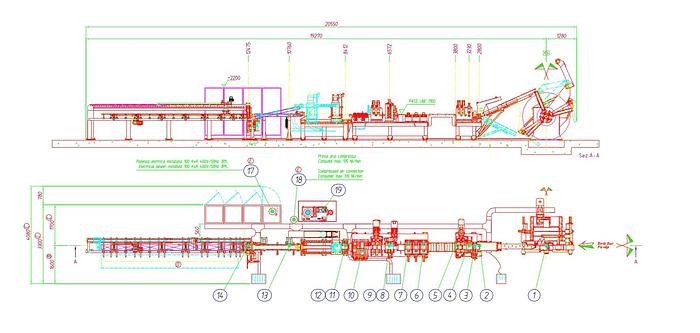

SCOPE OF SUPPLY

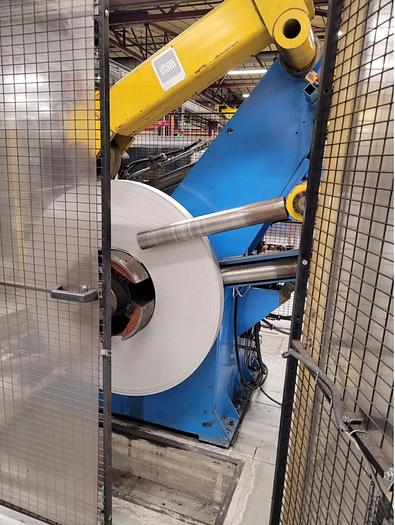

  • Decoiler
  • Coil opener
  • Entry guides
  • Straightener 1
  • Roll table
  • Edger x 2
  • Straightener 2
  • Pinch roll
  • Straightener 3

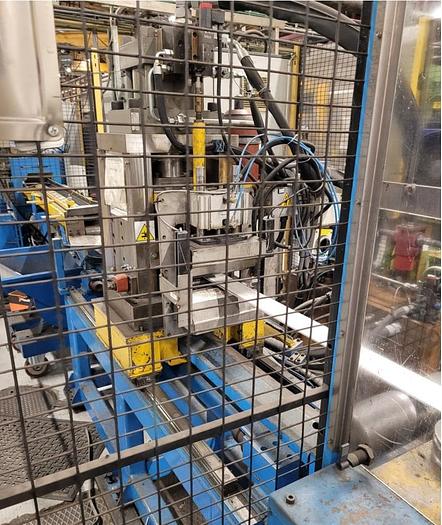

  • Flying shear
  • Guillotine shear
  • Accelerating conveyor/table
  • Unload table
  • Electrical system
  • Pneumatic system
  • Hydraulic System


GENERAL SPECIFICATIONS

  • Direction: right to left
  • Material width range: 30mm - 150mm
  • Material thickness range: 2.0mm - 8.0mm
  • Material specification: cr/hr steel and stainless steel
  • Maximum tensile strength: 750 n/mm²
  • Maximum speed: 40 m/min
  • Sheet length range: 200mm - 6000mm
  • Cut length tolerance: 0.2mm/metre
  • Coil weight max.: 3000kg


SERVICES

  • Input voltage/frequency: 400v 3-phase 50 hz
  • Installed power: 100kva
  • Pneumatic supply/consumption: 6 bar / 135ni/min
  • Hydraulics (decoiler unit): 190bar/47 l/min/18.5kw


Show All

Specifications

ManufacturerSTAM
ModelFlat Bar Cut-To-Length 150x8
Year2009
ConditionUsed
Stock Number4012
Directionright to left
Material width range30mm - 150mm
Material thickness range2.0mm - 8.0mm
Material specificationcr/hr steel and stainless steel
Maximum tensile strength750 n/mm²
Maximum speed40 m/min
Sheet length range200mm - 6000mm
Cut length tolerance0.2mm/metre
Coil weight max.3000kg
Input voltage/frequency400v 3-phase 50 hz
Installed power100kva
Pneumatic supply/consumption6 bar / 135ni/min
Hydraulics (decoiler unit)190bar/47 l/min/18.5kw
