RALC CTS CONNI CUTTING DEBURRING RALC LYBRA 450 + RALC SDB 100 – 5000

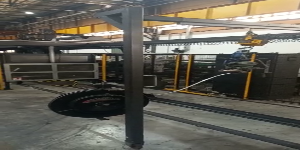

Complete LOADING, CUTTING & DEBURRING LINE & UNLOADING, manufactured by RALC CTS CONNI

OPTIONAL : AUTOMATIC ROBOTIC BUNDLING SYSTEM in squares/hexagonal bundles, with exit carriage and safety areas

Model RALC LYBRA 450 + RALC SDB 100 – 5000

• Cutting range: 40-140mm
• Bundle loader: 6,000mm - 12,300mm x 5Tn
• Unloading: Up to 5,000mm
• Optional: Automatic robotic packing system

BUNDLE SPECIFICATIONS:

Weight at loader: 5000 Kg

Diameter max.: 600 mm

Min. – max. tube length at entry: 6000 – 12300 mm

Max. bending of the tubes at entry: 1.5 mm/m

CUTTING

Possible diameters with loader:

• Rounds : 40 – 140 mm
• Squares : 40x40 – 135x135 mm
• Rectangles : 50x25 – 200x80 mm

Max. tube weight: 200 kg

Feeding speed: 10 - 60 m/min

Cutting disc diameter: 350-400-450 mm

Disc holding acc. to DIN 8576: 50/4/14/80 mm, 40/4/12/64 mm

Max. tube length at exit: 5000 mm

DEBURRING

Deburring unit

Dimensions:

• Rounds diameter: 20 – 102 mm
• Squares: 30x30 – 70x70 mm
• Rectangles: 40x20 – 80x50 mm

Length: 500 – 5000 mm

Material: St 37 acc, DIN17100

Max. bending of tubes at deburring: 2 mm/m

Brush diameter: 300 mm

Brush width: 600 mm

Steel wire diameter: 0.35 mm

Power: 3x400/50 V/Hz

MITRE CUTTING

With manual loading, it is also possible to make MITRE CUTTING

Cutting Capacity (without loader)

Round tube:

• At 90º: 100 – 125 – 145 mm
• At 45º: 90 – 115 – 135 mm
• At 30º: 80 – 95 – 110 mm

Squares:

• At 90º: 90 – 110 – 130 mm
• At 45º: 80 – 100 – 110 mm
• At 30º: 70 – 80 – 90 mm

Rectangles:

• At 90º: 140x70 – 160x90 – 180x110 mm
• At 45º: 110x60 – 130x70 – 150x70 mm
• At 30º: 80x40 – 100x50 – 110x60 mm

SCOPE OF SUPPLY

1. Loader Mod. CM5FT12 for 5000 kg bundle from 5000 to 12300 mm length

2. Cutting unit Mod. LYBRA C450 with:

• Micro-lubrication
• Air blowing
• Chips conveyor
• Tilting carriage
• Unloading clamp

3. Deburring unit Mod. SDB100 5000

4. Exit collecting cradle with endless slings

5. Complete electrics & hydraulics

6. Existing documentation *

7. Existing spares *

*To be checked before order

OPTION : Front collecting automatic portal with robot, capable of packing round, square, or rectangular tubes in hexagonal or square bundles
