FAGOR PROIN Slitter 1550x4 with quick-change system

Complete slitting line1550x4mm, made by FAGOR PROIN

This slitter is in perfect working condition. It is equipped with a quick-change system with 2nd shaft on-line.

Working range

• Strip thickness: 0,6 – 4,0 mm
• Strip width: 600 –1520 mm
• Coil I.D.: 508 – 610 mm
• Coil weight (max.): 25 ton
• Coil O.D.: 2000 mm
• Decoiler capacity: 25 ton
• Side trim: 3 - 9 mm
• Working Speed: 100 – 200 m/min (standard 150m/min)
• Blade shaft diameter: 180 mm

Number of cuts

• with thickness 0.9 mm : Max. 25 Cuts
• with thickness 4.0 mm : Max. 3 Cuts

Scope of supply

1. 25Tn loading car with 2 waiting positions

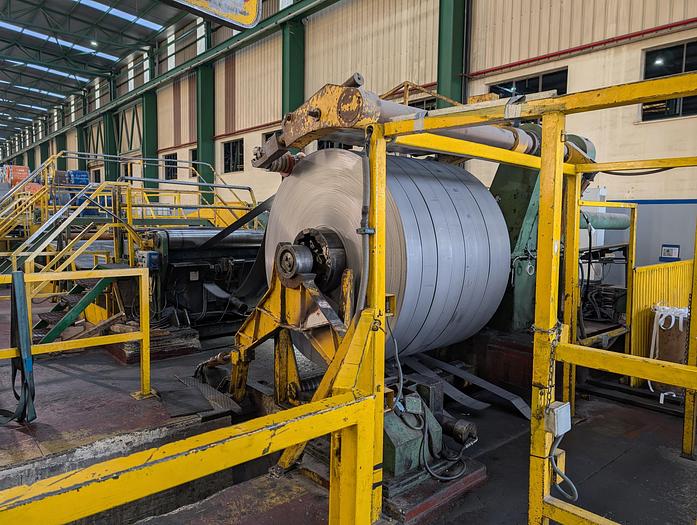

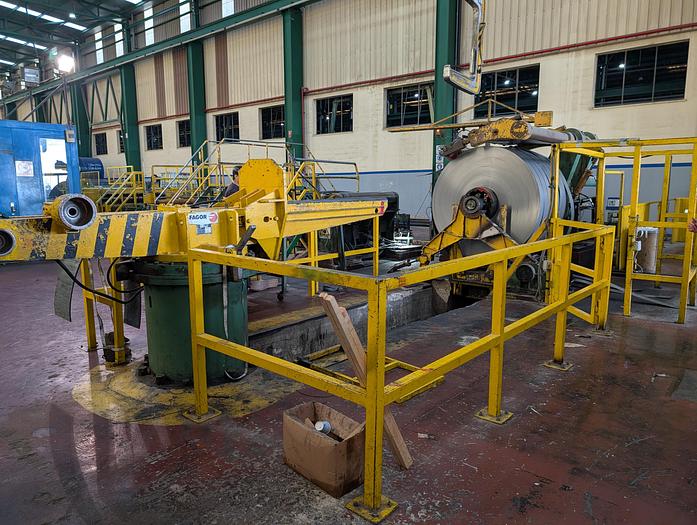

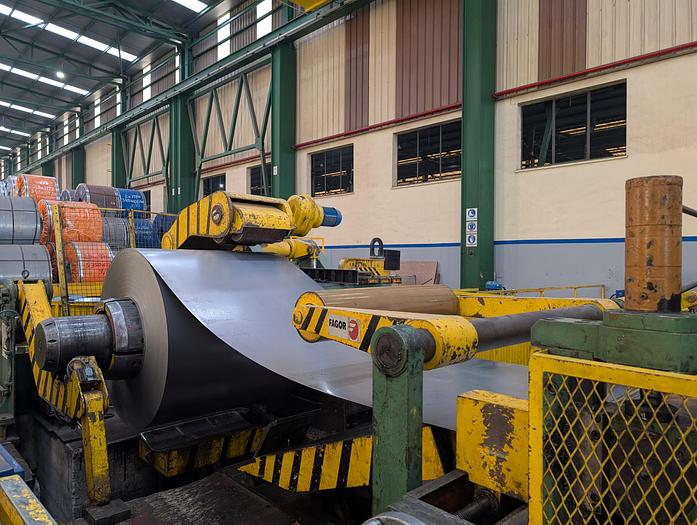

2. 25Tn Single mandrel uncoiler with

• Supporting arm unit
• Snumbber roll
• Coil opener

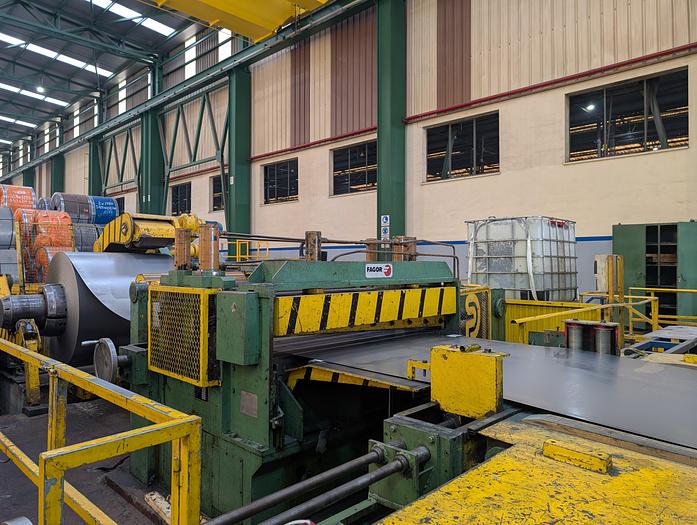

3. Entry straightener with hydraulic Shear

4. Intermediate guiding table with vertical centering rolls

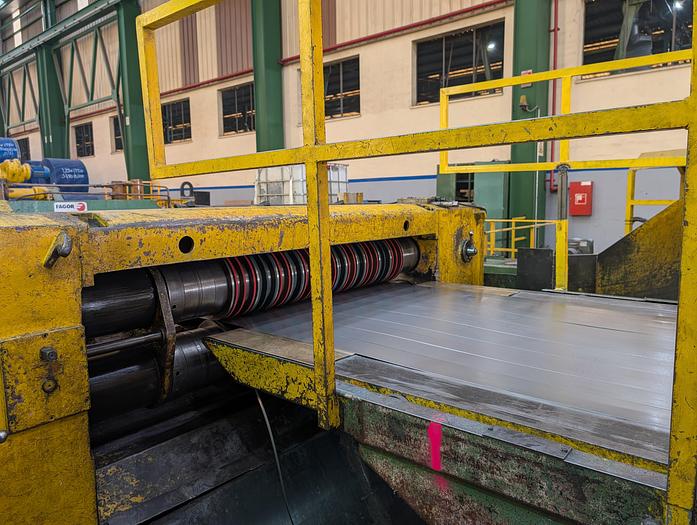

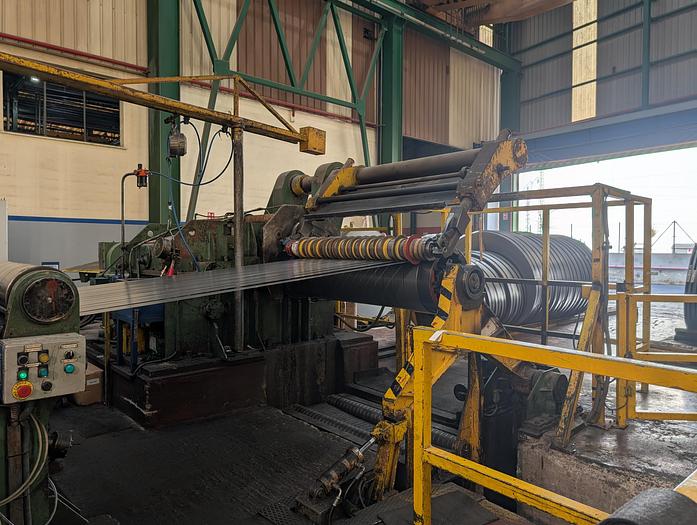

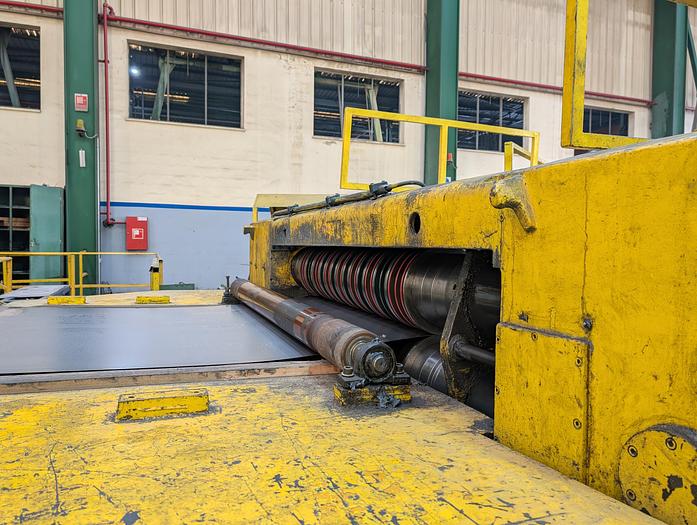

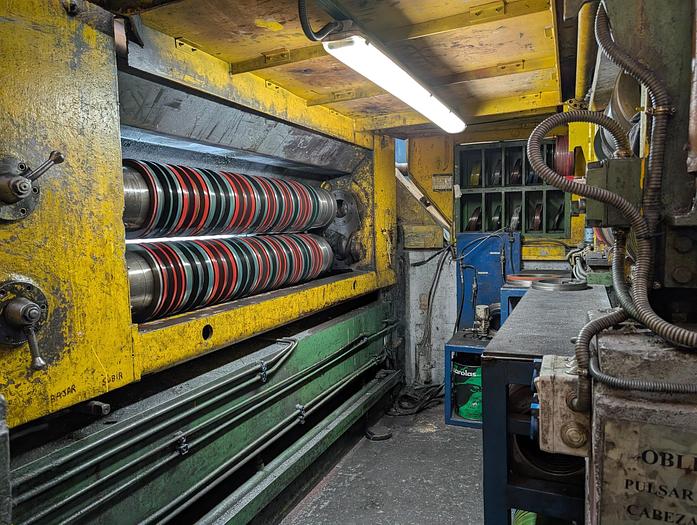

5. Circular shear:

• With 180mm shaft diameter
• Quick-change system with 2nd shaft on-line

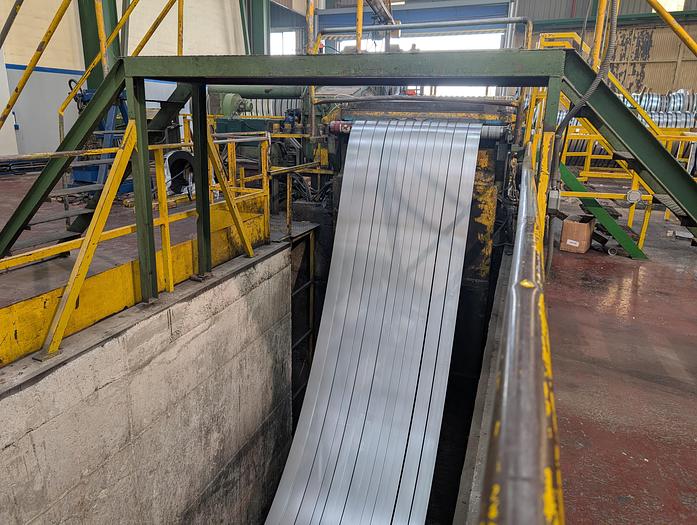

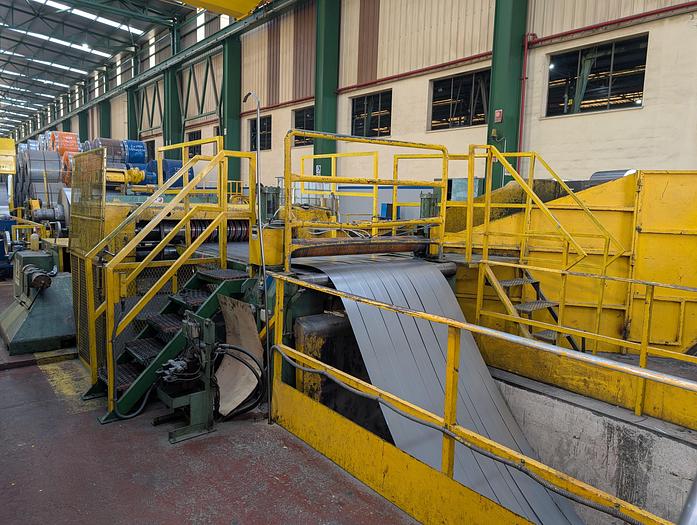

6. Loop table with hydraulic cover

7. Strip guiding axe with spacer

8. Pneumatic felt-press brake

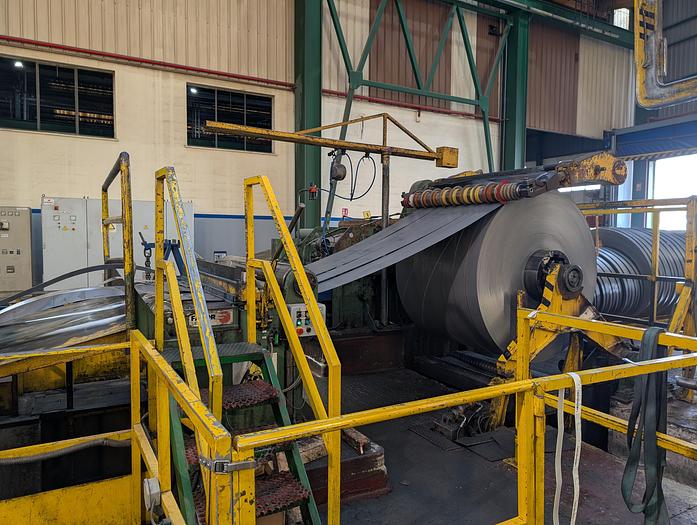

9. 25Tn Single mandrel recoiler

10. 25Tn exit unloading car

11. 25Tn coil turret 1 arm

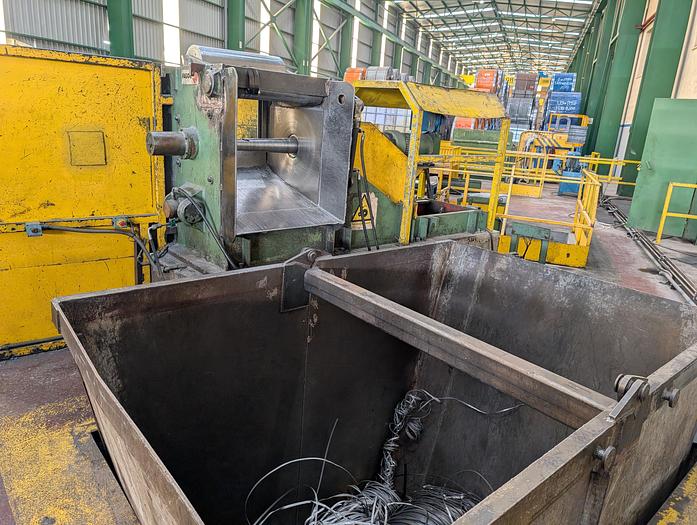

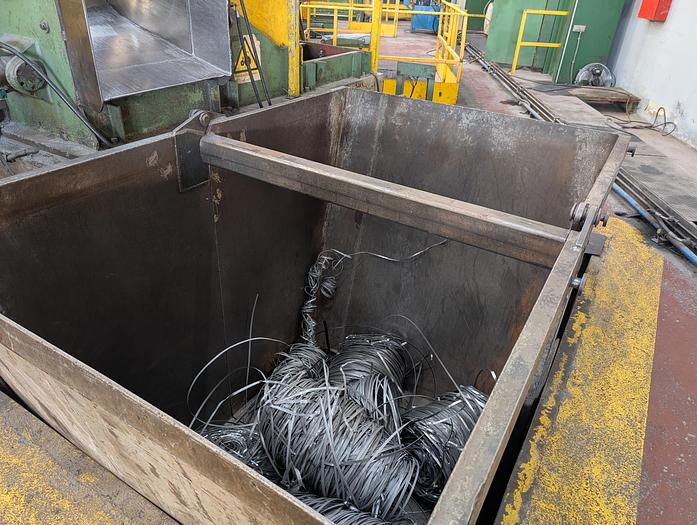

12. Scrap recoiler

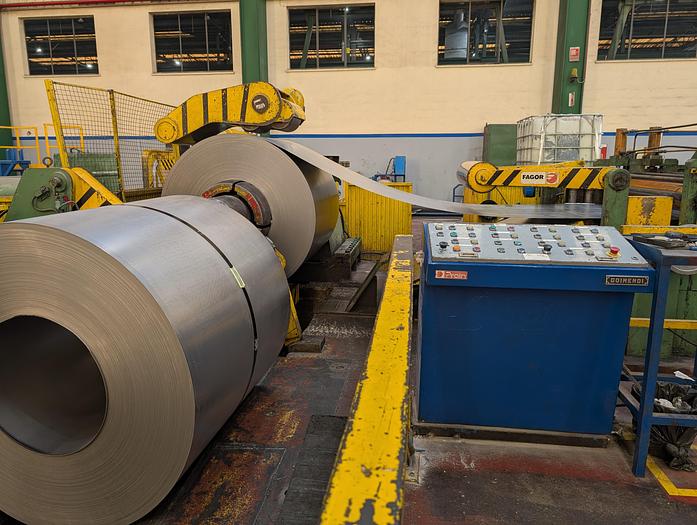

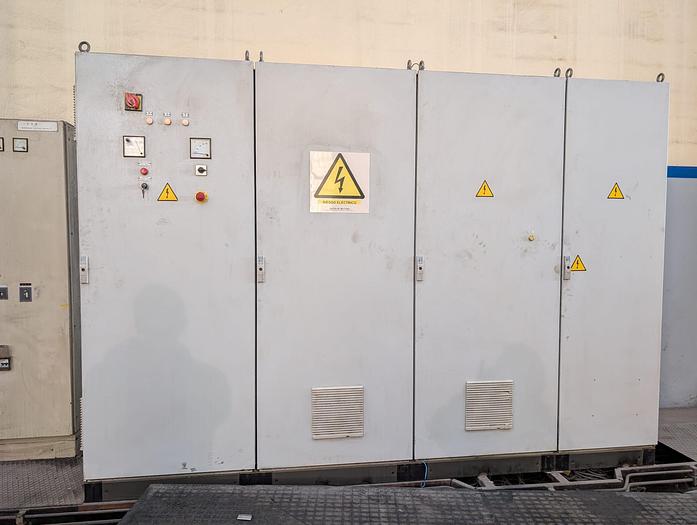

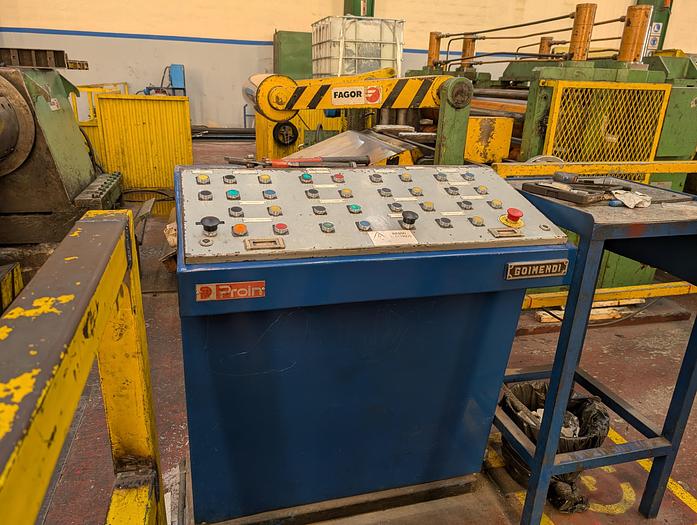

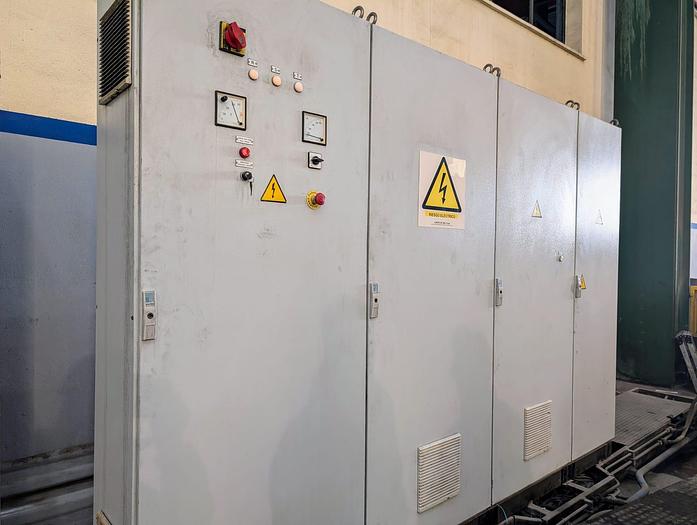

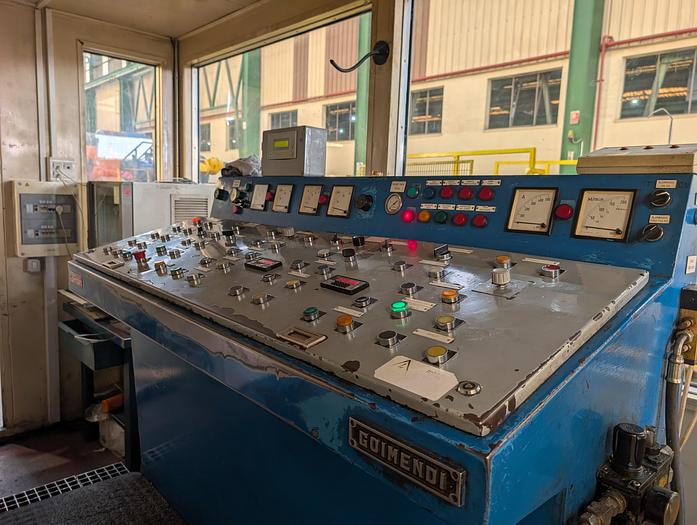

13. Electrical cabinets & operator panels

14. Hydraulic group

15. Safety barriers and photoelectric barriers

16. Stairs, passages, and accessories

17. Documentation and manuals

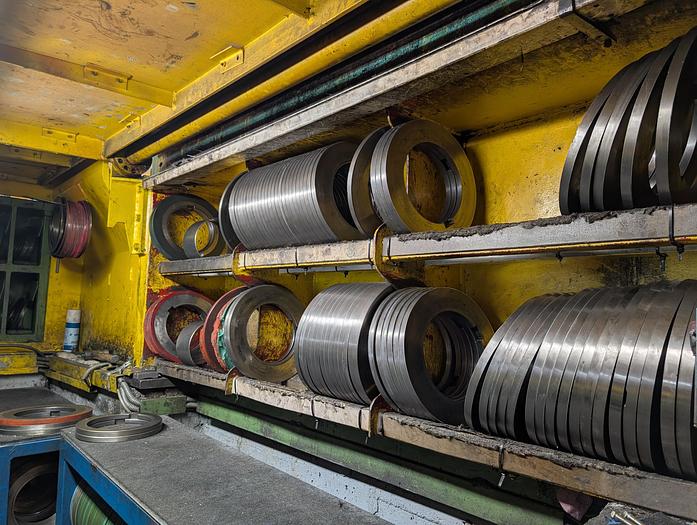

18. Complete set of tooling (list of tooling to be confirmed)
