OTO MILLS Tube Mill 80x3 QTC Quick change

HEAVY-DUTY HIGH-PERFORMANCE TUBE MILL OTO 80.3 QTC

With complete Quick Tool Change System

Made by OTO MILLS

PRODUCTION RANGE

• Diameter range 19mm – 80mm

• Thickness 0.8mm to 3.2mm

• Speed Max. 150 m/min

• Working direction Left - Right

Scope of supply:

1. Entry Line made OTO MILLS with:

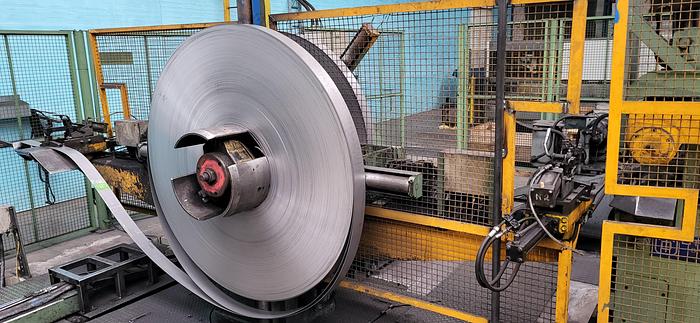

• Double Uncoiler OTOAD256 -PA

• Double strip peeler for opening from top/bottom

• Automatic strip joiner OTO GG254

• Floop vertical accumulator

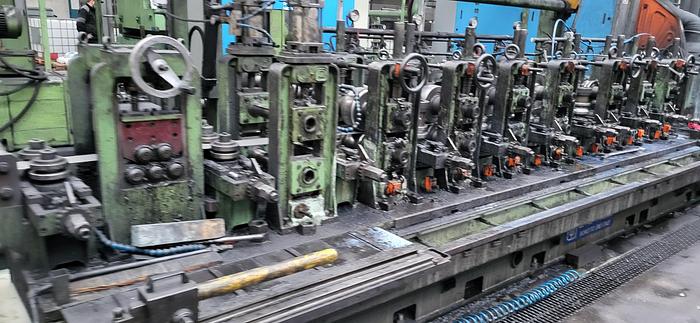

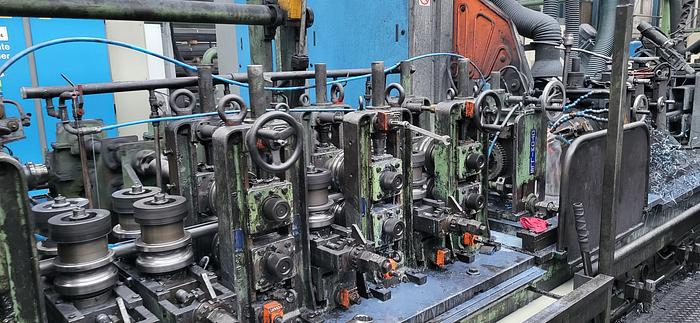

2. OTO 80.3 QTC tube mill made OTO MILLS with:

• Casted Iron stand

• Bottom shaft height adjustable

• Reinforced motor and gearboxes 2-speed transmission

• Hydraulic nuts

• Double length cooling tunnel

• Motorised turk-head for fast adjustment

3. Quick change rafted system OTO QTC - 2nd set of cassettes off-line including :

• 1 complete cassette for forming

• 1 complete cassette for fin-pass

• 1 complete cassette for sizing

• Quick – plug automatic cardan connections

4. 150 m/min Flying saw – High Speed cold saw OTO TCCG160 with :

• Carriage motion with 70kW motor

• Cutting head motion with hydraulic control

• AC Rotation of the blade

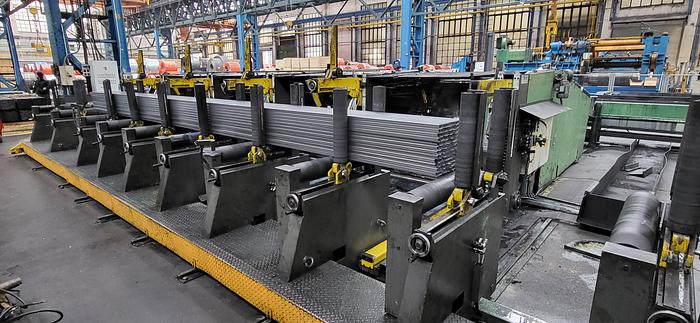

5. Automatic packer MAIR SQ.HEX.90.D.5.SL with emulsion draining and bundle weighting system

• Possibility to make hexagonal and square/rectangular bundles

• 5 modules for production of tubes 4-10m (12m for thickness >1.8mm)

• Including emulsion draining, and weighting unit

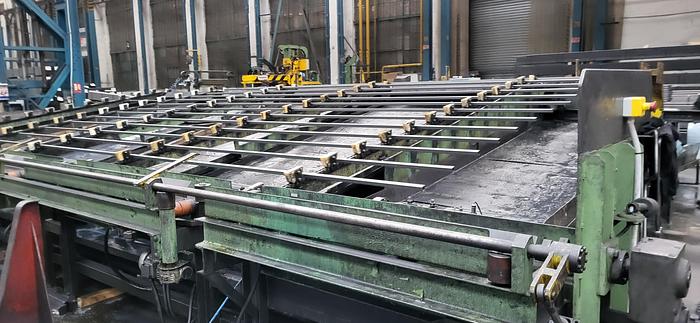

• 3 chains for finished bundle storage

• Test tube zone, with cutting saw for the test tube

6. Automatic strapping unit SIGNODE M400

7. Zinc spraying METALISATION 250

• 1 metallisation cabin

• 1 zinc spraying unit METALLISATION ENERGIZER 250

• 1 Zinc spraying gun ARCSRPAY 528E

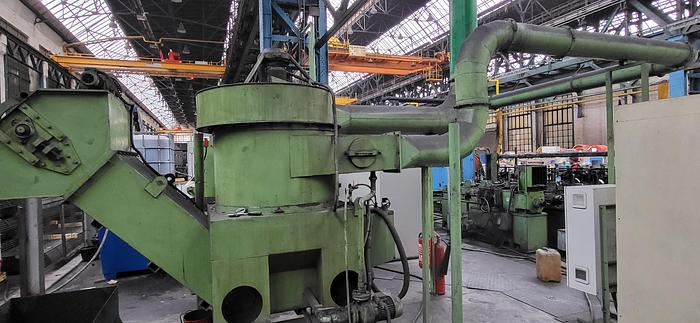

8. Fume exhaust system

• Fume exhaust conducts and exhaust covers on the required points a

• Filter for fumes

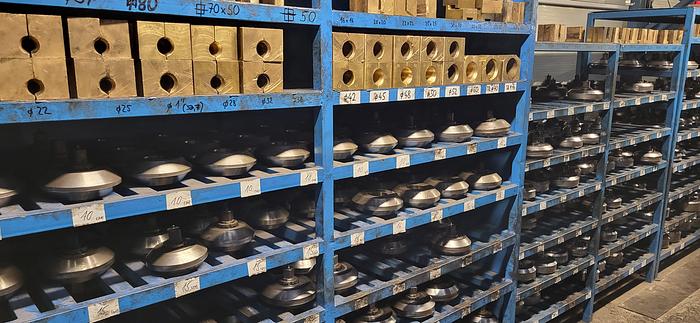

9. Complete set of rolls  (*See details)

NEW PARTS SUPPLIED IN 2023/2024:

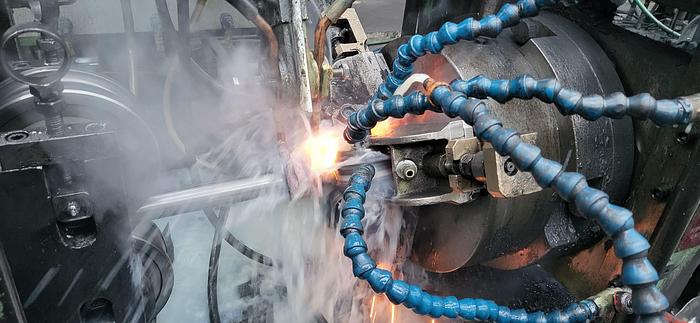

10. Thermatool CFI 350-VF Solid state welder with :

• Automatch

• Selectable frequency 250-400kHz

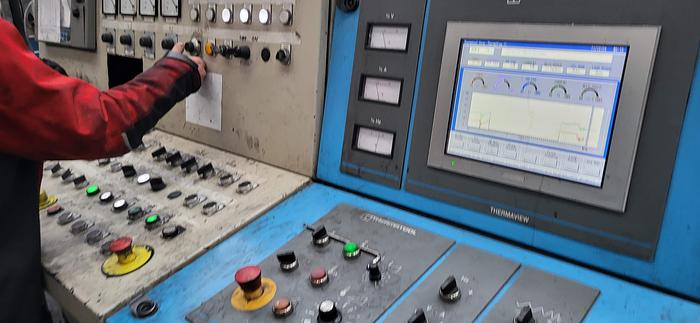

• Thermaview control panel

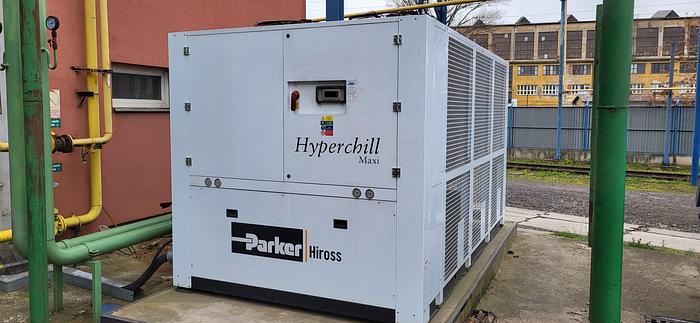

11. Cooler PARKER, Model hyprechill Maxi

12. Inner scarfing hydraulical Blissenbach, with all the toolding for ID 30-50m

13. OPTRONIC CNC control unit for driving flying saw (Switzerland)

14. New Emulsion plant with :

• Pump and heat exchanger

• Fillters

• Electrical controls and monitoring

15. New motor and electritical cabinet for accumulator

16. New motor and control for sizing section
