DANOBAT Tube Profile Bundle Sawing Line

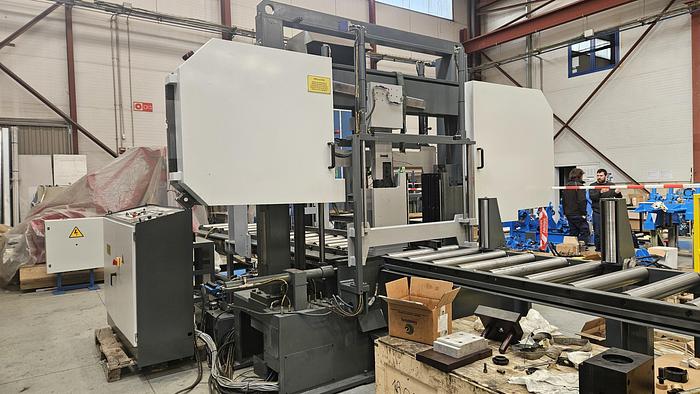

BANDSAW FOR BUNDLES OF TUBES & PROFILES DANOBAT CP 70.70

Completely revamped AS NEW 2024

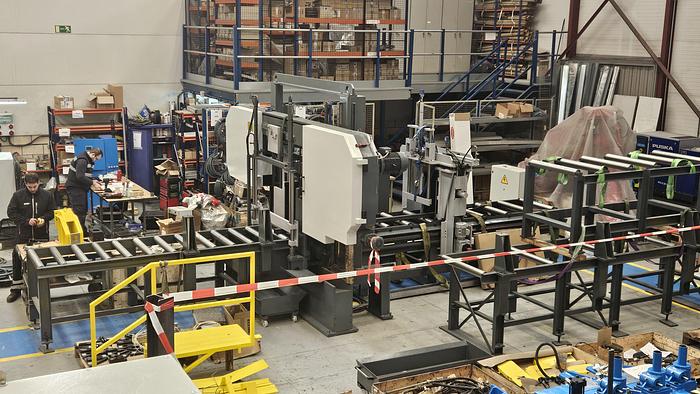

DANOBAT CP 70.70 MI 1.5 CN1, including:

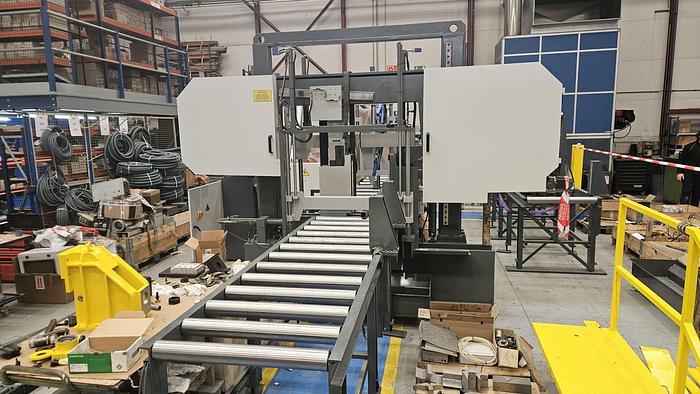

1. Loading Conveyor

• Non-driven input conveyor with cylindrical rollers
• Section 1: 4,100 mm long
• Section 2: 4,200 mm long

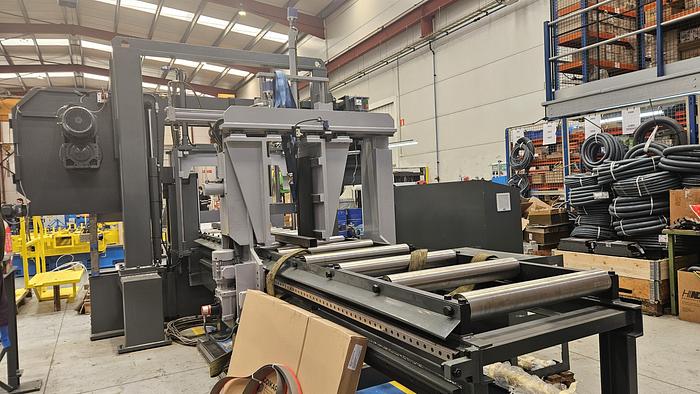

2. Bundle Feed Gripper, including:

• Bundle gripper with bundle clamping for hexagonal bundles
• Linear guides and rack and pinion for gripper movement
• Forward and backward movement according to pre-programmed cutting length, with a stroke of up to 3,200 mm

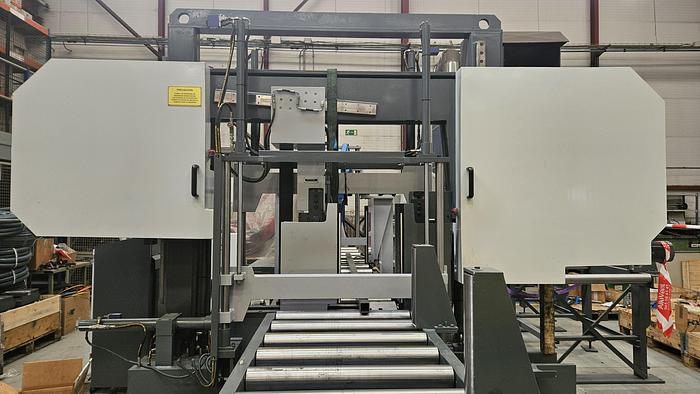

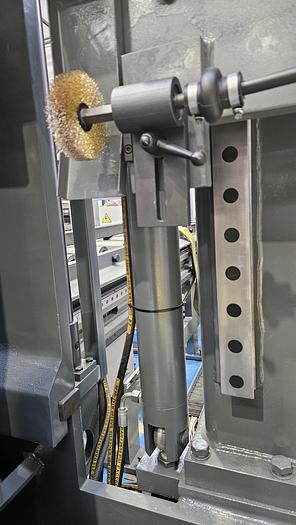

3. DANOBAT CP70/70 Bandsaw Unit, including:

• Heavy-duty electro-welded structure

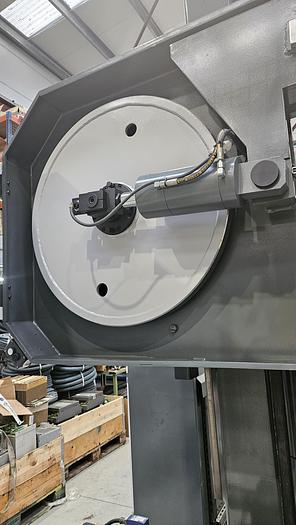

• Band wheel dimensions: 1000 mm diameter and 850 mm diameter
• Cutting band dimensions: 8840 x 54 x 1.6 mm
• Electrically adjustable band speed
• Hydraulically adjustable up/down speed
• Integrated hydraulic unit
• Machine weight: 6,700 kg

4. Output Roller Conveyor

• Non-driven output conveyor with cylindrical rollers
• Section 1: 3,200 mm long
• Section 2: 2,350 mm long

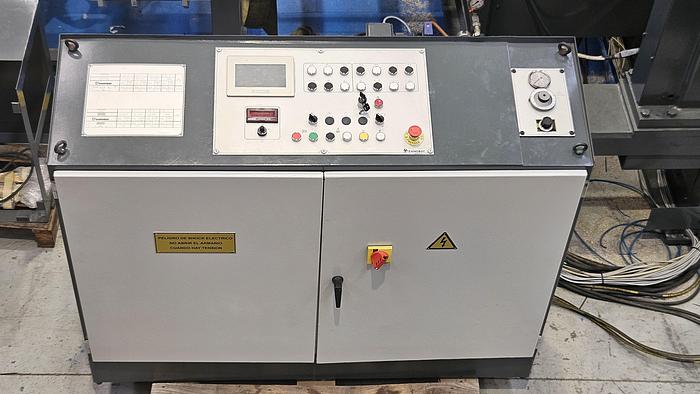

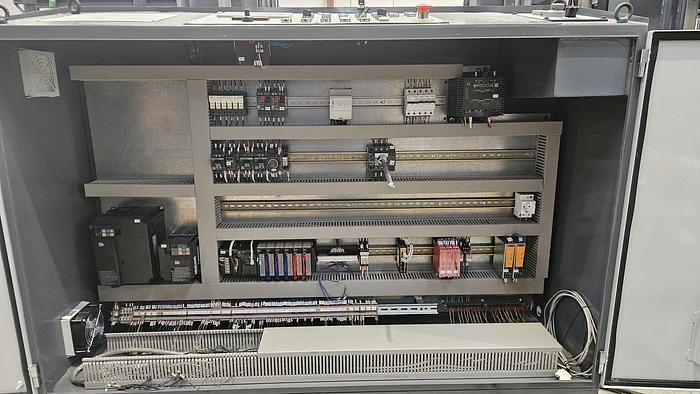

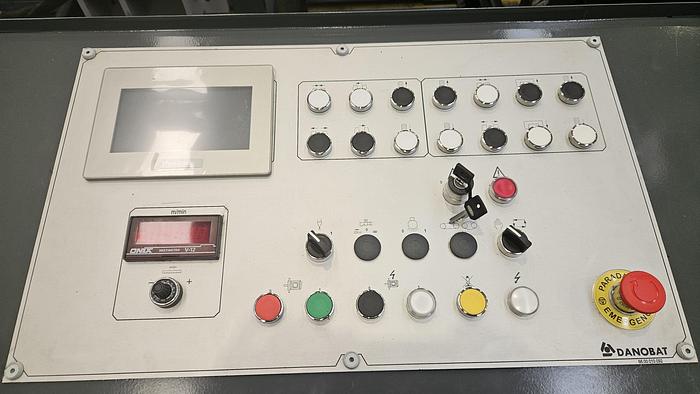

5. Electrical Cabinet with Operator Panel

6. Manuals and Drawings

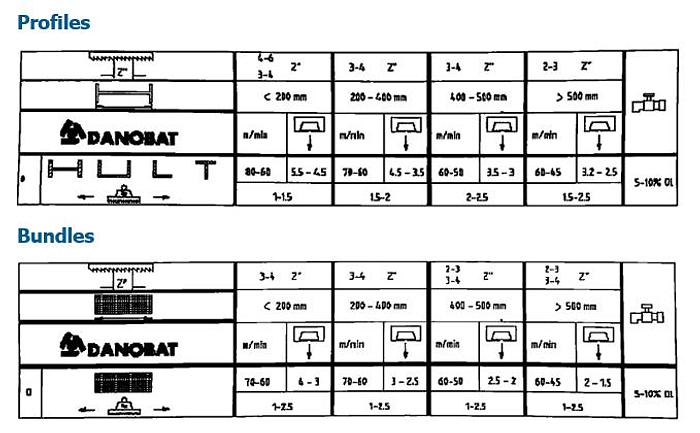

TECHNICAL DATA

General:

Manufacturer: DANOBAT

Model: CP 70.70 MI 1.5 CN1

Power: 13 kW

Weight: 9700 kg

Cutting Speed: 11.5 - 95 m/min

Installation Dimensions: 12100 x 5500 x 3030 mm

Cutting Capacity:

Dimensions for Rectangular Cutting: Max. 700 x 700 mm

Dimensions for Cylindrical Cutting: Max. Ø 700 mm

Power Details:

Main Motor: 7.5 kW

Hydraulic Unit Motor: 4 kW

Displacement Motor for Loading Conveyor: 0.9 kW

Cleaning Brush Motor: 0.25 kW

Total Machine Power: 15 kW

Weight:

Machine (Saw): 6700 kg

Input Conveyor: 2100 + 600 kg

Output Conveyor: 900 + 600 kg
