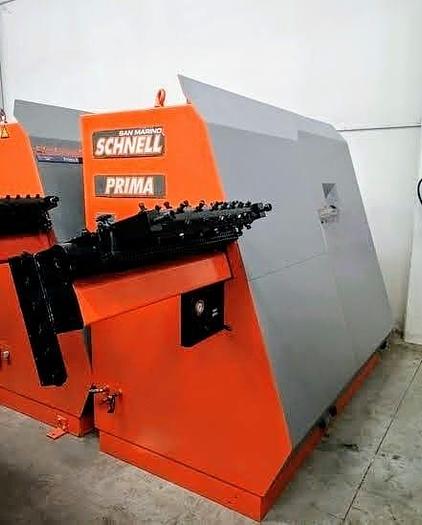

SCHNELL Automatic Stirrup Bender PRIMA 12
SCHNELL Automatic Stirrup Bender PRIMA 12
orCall (or message us on WhatsApp) (+34) 916 587 260
Description
Complete automatic Stirrup bender PRIMA 12, manufactured by SCHNELL (Italy) Full revamped “as new”, Up to 12 mm
SCOPE OF SUPPLY
Two pay-offs for wire coils.
- Composed by basement & coil support.
- Coils weight max. 3.800 Kg coils.
- With automatic pneumatic brake controlled from the computer of the line.
Rebar straightening & cutting machine Schnell PRIMA 12
- Straightening devices with mechanical setups and separate adjustment for each strand.

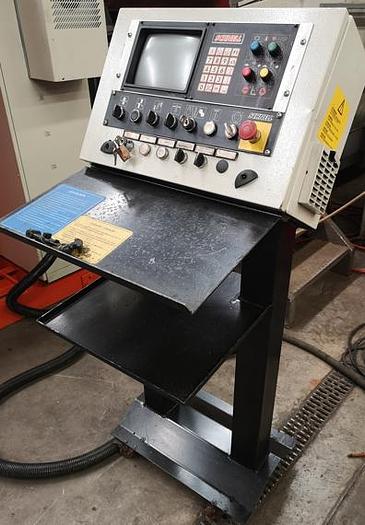

- Serial interface to Minicontrol type computer.
TECHNICAL SPECIFICATIONS
Revamping year: 2025
Original manufacturing year: 2005
Wire diameter:
- Single strand up to: 4 – 12 mm
- Double strand up to: 4 – 10 mm
Max pulling speed: 120 m/min
Central mandrels Ø: 20 – 50 mm
Max bending angle: 180°
Max Bending speed: 1650° / sec
Working pressure: 7 bar
Average power consumption (400 V/50 Hz; 480V/60 Hz): 2 kW/h
Dimensions: 3530 x 1330 x 2180 mm
Weight (approx.): 2300 Kg
Specifications
| Manufacturer | SCHNELL |
| Model | Automatic Stirrup Bender PRIMA 12 |
| Year | 2025 |
| Condition | Refurbished |
| Stock Number | 2969 |
| Original manufacturing year | 2005 |
| Revamping year | 2025 |
| Wire diameter Single strand up to | 4 – 12 mm |
| Wire diameter Double strand up to | 4 – 10 mm |
| Max pulling speed | 120 m/min |
| Central mandrels Ø | 20 – 50 mm |
| Max bending angle | 180° |
| Max Bending speed | 1650° / sec |
| Average power consumption (400 V/50 Hz; 480V/60 Hz) | 2 kW/h |
| Working pressure | 7 bar |
| Weight (approx.) | 2300 Kg |
| Dimensions (approx.) | 3530x1330x2180 mm |
