STAM & PROMEC Slitter 2000x6 + Slit coils packaging
![Used STAM & PROMEC Slitter 2000x6 + Slit coils packaging](https://i.machineryhost.com/53c5b2affa12eed84dfec9bfd83550b1/8cf71afcfae143ac399c0801fa035838/large-3896-Slitter-STAM-2000x8x30-23.jpg)
STAM & PROMEC Slitter 2000x6 + Slit coils packaging
Description

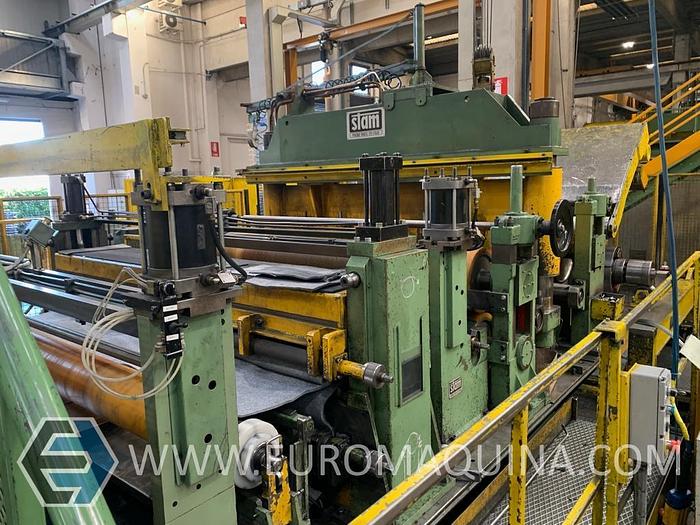

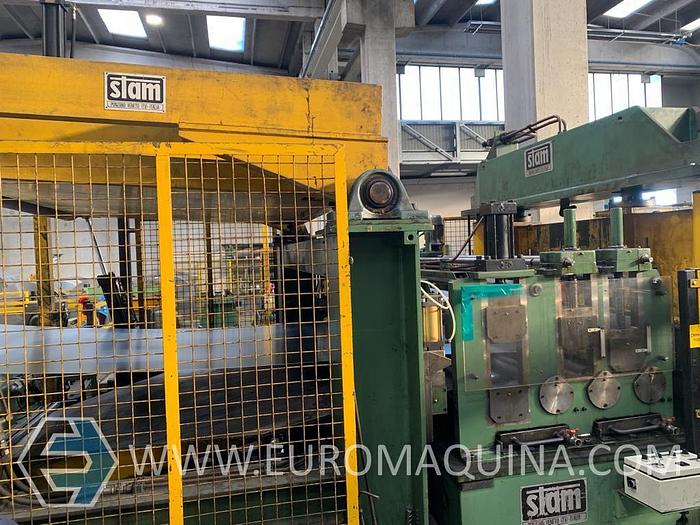

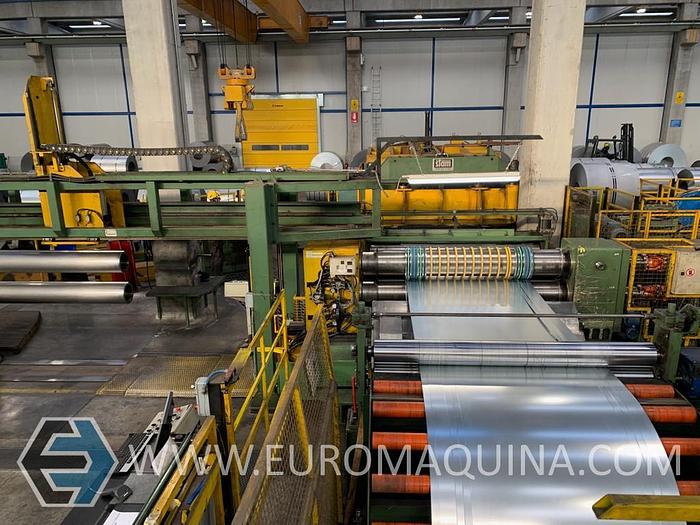

Slitting line 2000x6, made STAM & Slit coils packaging, made PROMEC
SCOPE OF SUPPLY:
1 Loading carriage: capacity 25 ton
2 Expandable mandrel uncoiler: with hold down roll, strip centring device and driven turning, braking and side displacement.

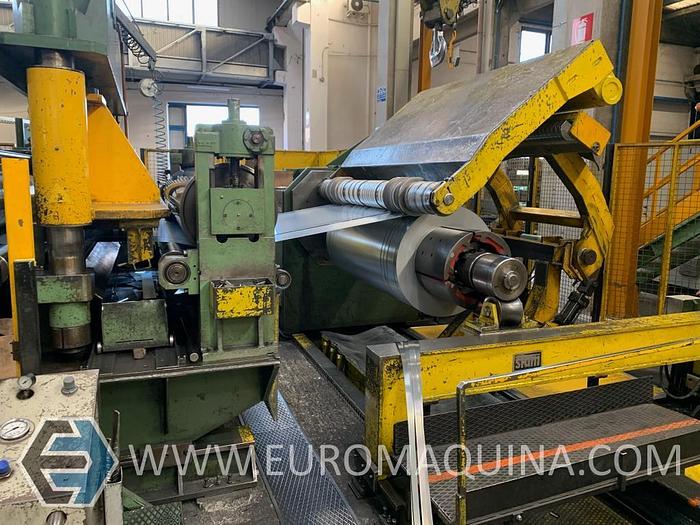

3 Coil opener and ends straightening roll

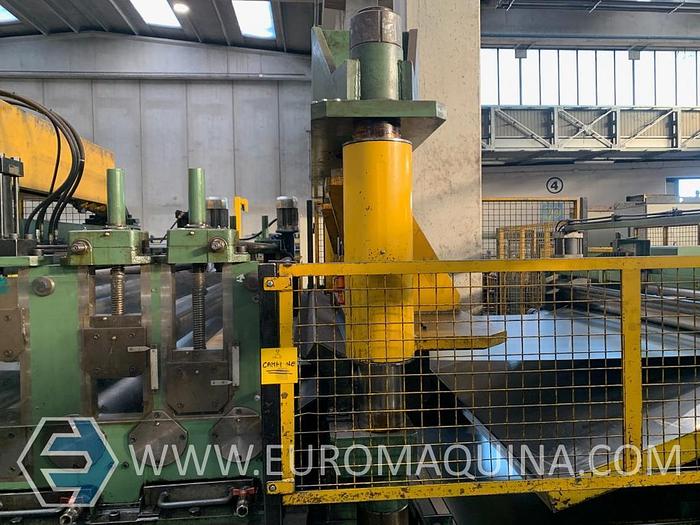

4 Pulling pinch roll & straightening rolls

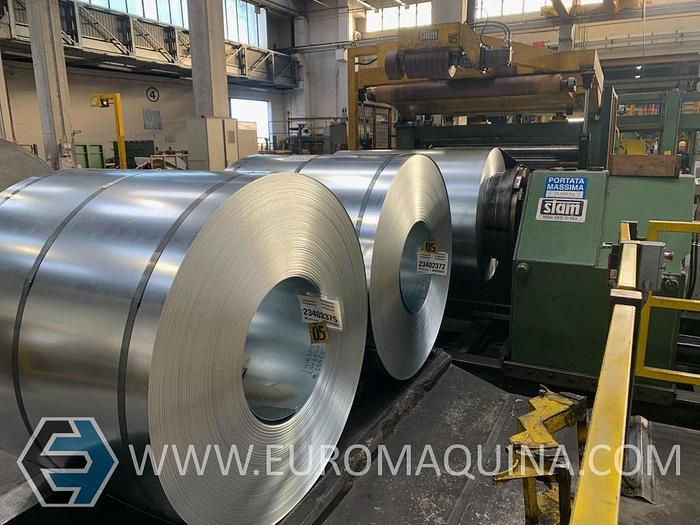

5 Strip end shear.
6 Guiding rolls.

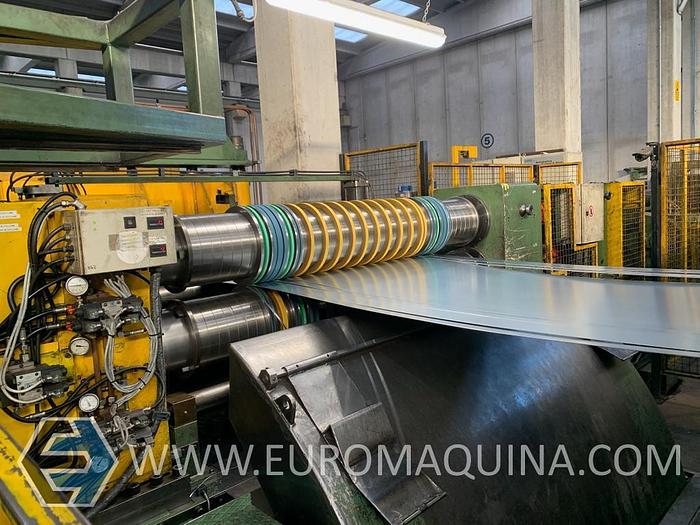

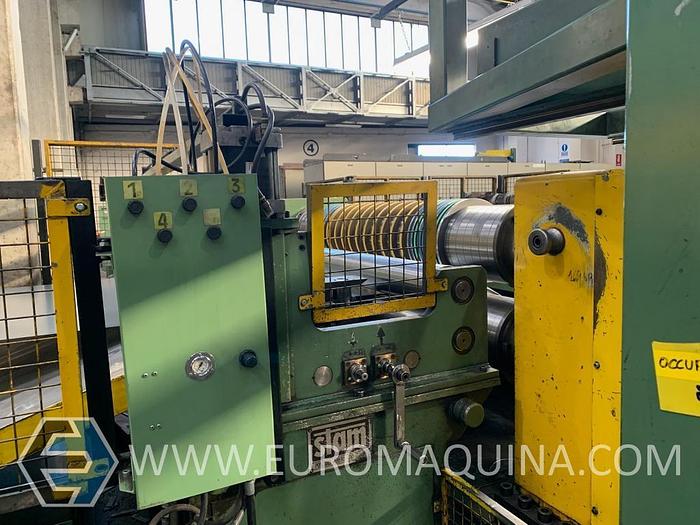

7 Circular shear. Automatic extraction towards 3-arms turnstile.
8 Scrap recoiler.

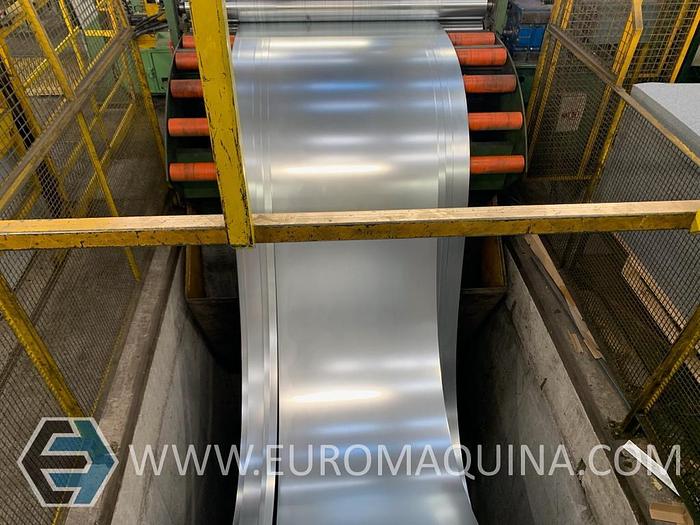

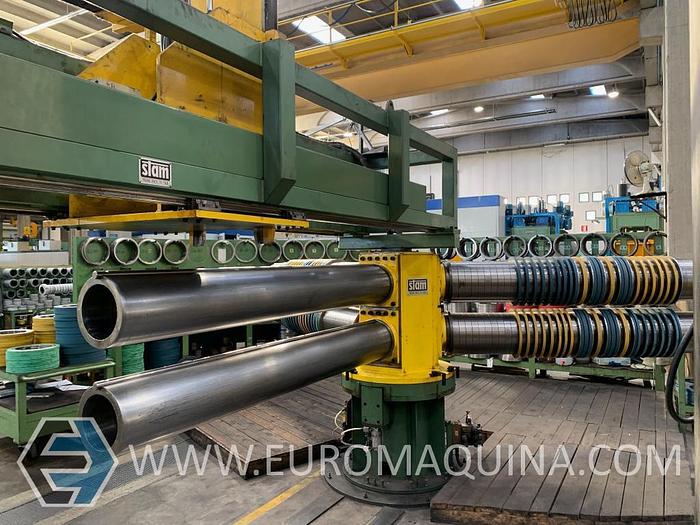

9 Loop pit with entry & exit roll baskets.
10 Exit table and strip tensioning device. Pulling, braking rolls and end shear
11 Recoiling mandrel..

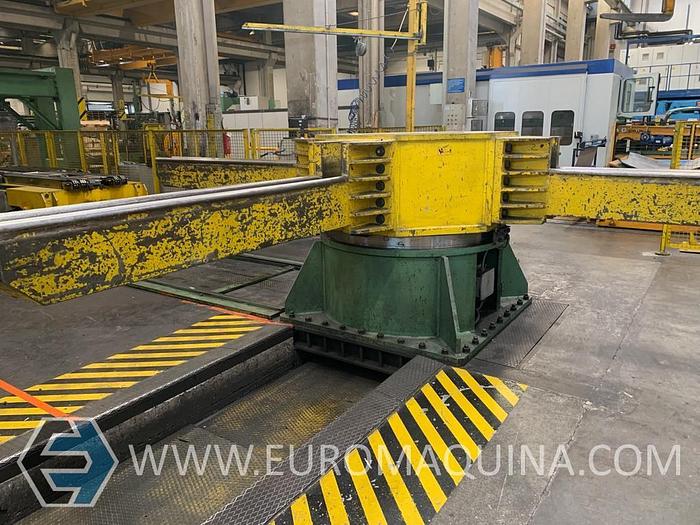

12 4-arms unloading turnstile. 4x25 ton each arm.
13 Control desks: main, uncoiler and recoiler.
14 Electric cabinets

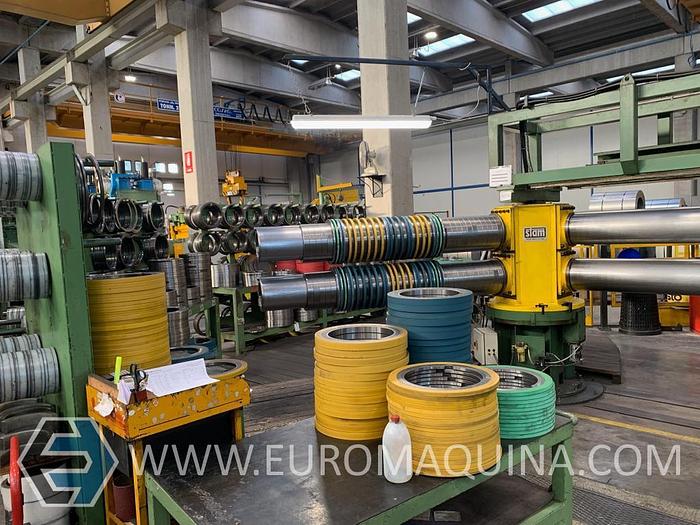

15 Existing tooling.
16 Slit coils packaging line. Composed by:
- coil turning device,
- roll conveyor,
- strapping table Signode,
- roll conveyor,
- coils stacking.
Specifications
Manufacturer | STAM & PROMEC |
Model | Slitter 2000x6 + Slit coils packaging |
Condition | Used |
Stock Number | 3896 |
Thickness | 0.5 – 6 mm |
Coil width | 600 – 2100 mm (possible 400 with special tools) |
Coil weight | Max. 25 Ton |
